AF
Air Breathers
Air breathers are used for the filtration of the incoming air to the tanks of hydraulic systems via a 40 micron element and equalize the air pressure between inside and outside of the tank.
Model No. | Air Breather | Filter Element | ||||||||
Thread Connection A |
B mm |
C mm |
D mm |
E mm |
Flow m³ /min |
Weight kg |

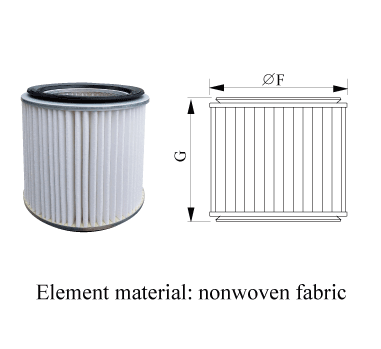

F mm |
G mm |
Weight kg |
|
AF-06 | 3/4〞PT | 19 | 100 | 80 | 112 | 0.35 | 0.28 | 59 | 63 | 0.04 |
---|---|---|---|---|---|---|---|---|---|---|
AF-08 | 1〞PT | 19 | 100 | 80 | 112 | 0.45 | 0.32 | 59 | 63 | 0.04 |
AF-12 | 1-1/2〞PT | 26 | 128 | 111 | 161 | 1.70 | 0.66 | 91 | 93 | 0.14 |
AF-16 | 2〞PT | 26 | 128 | 111 | 161 | 2.1 | 0.68 | 91 | 93 | 0.14 |
AF-20-P | 2-1/2〞PT | 30 | 193 | 172 | 195 | 3.5 | 1.28 | 140 | 130 | 0.34 |
AF-24-P | 3〞PT | 30 | 193 | 172 | 195 | 4.6 | 1.26 | 140 | 130 | 0.34 |
AF-32-P | 4〞PT | 26 | 221 | 196 | 228 | 7.1 | 1.72 | 170 | 153 | 0.46 |
