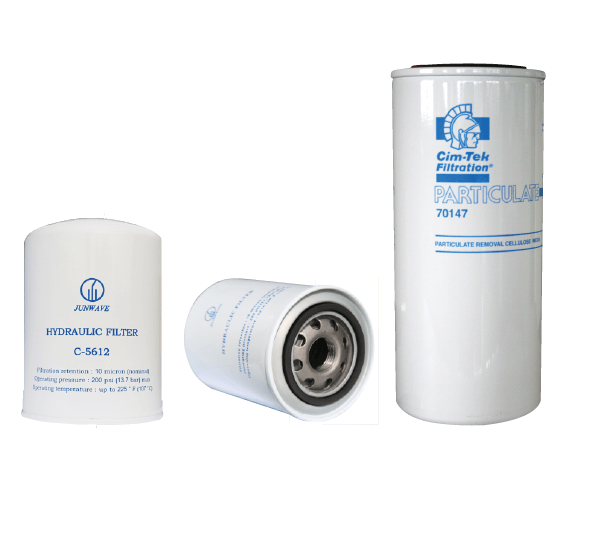

RF-element
Spin-On Return Filters
Replace the element after the first 50 hours of operation, and every 250
hours thereafter.
The frequency of replacement depends on the
operating conditions.
Model No. ( JUNWAVE) |

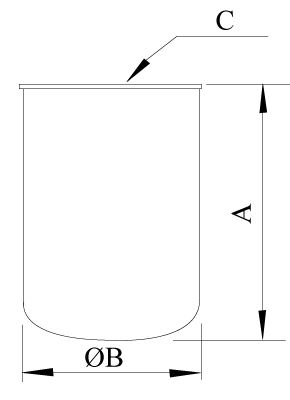

A mm |
B mm |
Thread connection C |
Nominal rating | Flow (l/min) |
Apply to ... | Weight kg |
SE-50-10N/C5612 | 133 | 95 | 1〞-12 UNF | 10 μ cellulose | 60 | RFT-06/RF-06/08 | 0.54 |
---|---|---|---|---|---|---|---|
SE-100-10N/C5511 | 174 | 129 | 1-1/2〞-16 UNF | 10 μ cellulose | 150 | RF-10 | 1.06 |
Model No. (CIM-TEK) |
A mm |
B mm |
Thread connection C |
Nominal rating | Flow (l/min) |
Apply to ... | Weight kg |
SE-50-10N/70134 | 133 | 95 | 1〞-12 UNF | 10 μ cellulose | 60 | RFT-06/RF-06/08 | 0.5 |
SE-50-25N/70135 | 25 μ cellulose | 70 | 0.5 | ||||
SE-50-100M/70145 | 144 μ cellulose | 150 | 0.5 | ||||
SE-70-10N/70146 | 219 | 10 μ cellulose | 70 | 0.68 | |||
SE-70-25N/70147 | 25 μ cellulose | 80 | 0.68 | ||||
SE-100-10N/70157 | 174 | 129 | 1-1/2〞-16 UNF | 10 μ cellulose | 150 | RF-10 | 0.96 |
SE-100-25N/70158 | 25 μ cellulose | 160 | 0.96 | ||||
SE-100-100M/70168 | 144 μ cellulose | 250 | 1.04 | ||||
SE-150-10N/70171 | 279 | 10 μ cellulose | 170 | 1.22 | |||
SE-150-25N/70172 | 25 μ cellulose | 180 | 1.28 |
