CV

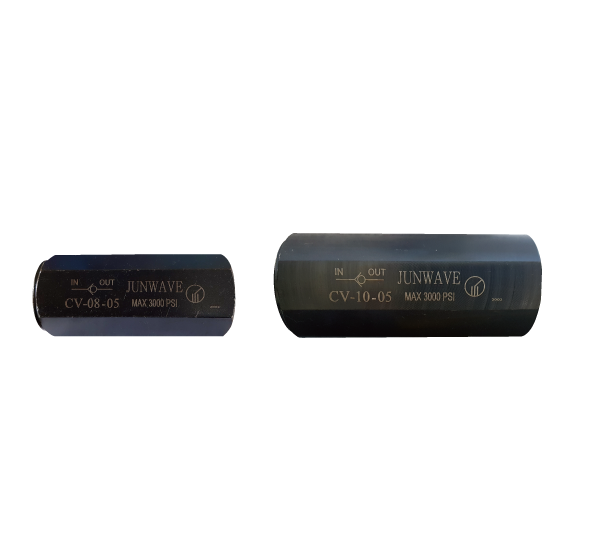

配管式逆止閥
| 型號 | 口徑 | A mm |
B mm |
C mm |
工作壓力 | 開啟壓力 | 流量 l/min |
重量 (kg) |
| CV-03 | 3/8〞 PT | 23 | 74 | 210 kg/cm² (3000 PSI) |
05: 0.5 kg/cm² 50: 5.0 kg/cm² |
40 | 0.18 | |
|---|---|---|---|---|---|---|---|---|
| CV-04 | 1/2〞 PT | 29 | 80 | 60 | 0.32 | |||
| CV-06 | 3/4〞 PT | 35 | 90 | 100 | 0.48 | |||
| CV-08 | 1〞 PT | 46 | 113 | 150 | 1.10 | |||
| CV-10 | 1-1/4〞 PT | 55 | 133 | 60 | 200 | 1.88 | ||
| CV-12 | 1-1/2〞 PT | 60 | 139 | 65 | 270 | 2.18 | ||
| CV-16 | 2〞 PT | 75 | 154 | 82.5 | 400 | 3.90 | ||
| CIT-03 | 3/8〞 PT.NPT.SAE | 27 | 76 | 350 kg/cm² (5000 PSI) |
05: 0.5 kg/cm² 50: 5.0 kg/cm² |
40 | 0.32 | |
| CIT-04 | 1/2〞 PT.NPT.SAE | 35 | 82 | 60 | 0.56 | |||
| CIT-06 | 3/4〞 PT.NPT.SAE | 41 | 96 | 100 | 0.81 | |||
| CIT-08 | 1〞 PT.NPT.SAE | 55 | 114 | 150 | 1.84 | |||
| CIT-10 | 1-1/4〞 PT.NPT.SAE | 60 | 133 | 65 | 200 | 2.40 | ||
| CIT-12 | 1-1/2〞 PT.NPT.SAE | 65 | 140 | 70 | 270 | 2.70 | ||
| CIT-16 | 2〞 PT.NPT.SAE | 85 | 154 | 88.9 | 400 | 4.80 |
